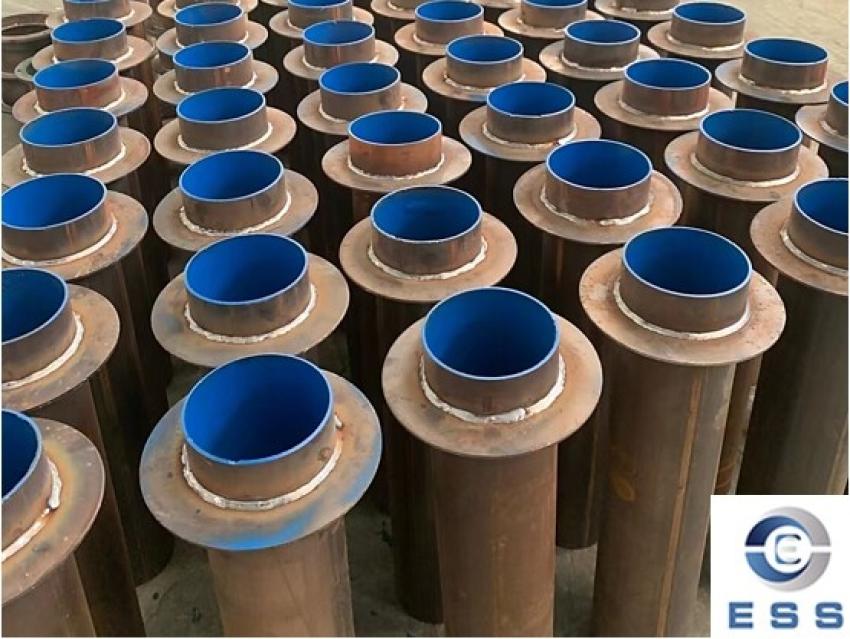

In construction projects, waterproofing is of vital importance, and flexible waterproof casing pipe, as an important waterproof material, plays a key role in preventing water leakage and protecting building structures. This article will introduce the correct installation method of flexible waterproof casing pipe in detail, from preparation to installation steps, to acceptance criteria, and comprehensively analyze how to ensure the effectiveness and durability of flexible waterproof casing pipe.

Preparation

1. Preparation of tools and materials

Before installing the flexible waterproof casing pipe, you first need to prepare the necessary tools and materials. This includes but is not limited to gloves, rulers, cutters, glue, flexible waterproof casing pipe, sealing gaskets, asphalt hemp or polyvinyl chloride foam boards, nuts and bolts and other fixings. Make sure all tools and materials are complete, and prepare an appropriate number of flexible waterproof casing pipes according to project needs.

2. Clean the installation surface

Clean up impurities, dust, oil stains, etc. in the installation area to ensure that the surface is clean and tidy. This is to ensure that the flexible waterproof casing pipe can be tightly combined with the wall or pipe during installation to avoid leaving gaps, thereby improving the waterproof effect.

3. Determine the installation location

According to the construction drawings and specifications, determine the installation location and size of the flexible waterproof casing pipe. Use a ruler to measure and mark the location where the hole needs to be drilled, and ensure that the mark is accurate.

Installation steps

1. Drilling and cleaning holes

Use a drilling tool to drill holes at the marked location. The hole diameter and depth must match the size of the flexible waterproof casing pipe. After drilling, use a rag or compressed air to remove dust and debris in the hole to ensure that the hole is clean for subsequent installation.

2. Assemble the flexible waterproof casing pipe

Assemble the flexible waterproof casing pipe with the pipe to ensure that the assembly is firm and tight. During the assembly process, pay attention to check whether the flexible waterproof casing pipe has defects such as cracks and sand holes, and whether the pipe wall thickness is uniform. If necessary, auxiliary materials such as sealing gaskets or asphalt hemp can be used to enhance the sealing effect.

3. Check the sealing

Apply an appropriate amount of water or other sealing materials to the assembled flexible waterproof casing pipe and check the sealing between it and the pipe. Ensure that there is no leakage. If leakage is found, it should be adjusted or replaced immediately.

4. Install the fixings

Select appropriate fixings, such as nuts, bolts, etc., according to the model and specifications of the flexible waterproof casing pipe. Install the fixings on the flexible waterproof casing pipe to ensure that it is firm and stable. During the installation process, avoid squeezing, bending or other forms of damage to the flexible waterproof casing pipe.

5. Connect the pipe

Connect the flexible waterproof casing pipe to the pipe to ensure that the connection is firm and tight. During the connection process, pay attention to check whether the interface is tight and whether there is a gap. If necessary, use the adjustment piece to adjust to ensure the correct connection position.

6. Adjust the position and fix

Check whether the position of the flexible waterproof casing pipe and the pipe is correct. If necessary, use the adjustment piece to adjust. After the adjustment is completed, use the fixing piece to firmly fix the flexible waterproof casing pipe on the pipe to ensure that it will not loosen or fall off.

Installation precautions

1. Installation direction

The installation direction of the flexible waterproof casing pipe needs to be determined according to the specific situation. If the waterproof casing pipe is installed in a place without a sump, the side of the flange should be installed towards the indoor direction; if the waterproof casing pipe is installed in a place with a sump, the side without the flange should be installed towards the sump.

2. Influence of corrosive materials

Pay attention to whether there are corrosive substances on the upstream surface. Corrosive materials have a great influence on the installation of flexible waterproof casing pipes, and the influence of corrosion should be considered. For corrosive materials, flexible waterproof casing pipes need more attention to ensure their long-term effectiveness.

3. Level and tilt

The flexible waterproof casing pipe must be buried in concrete in advance, and must be kept level to prevent tilting. When used in a pool, attention must be paid to the position of the upstream water surface and the water surface to ensure that the flexible waterproof casing pipe can work properly.

4. Selection of sealing gaskets

In order to ensure sufficient sealing effect, in addition to using sealing gaskets, auxiliary materials such as asphalt hemp or polyvinyl chloride foam board should also be prepared. When selecting sealing gaskets, sealing rings with a larger contact area should be selected. It is not necessary to use circular sealing rings, and trapezoidal or other shapes of sealing rings can also be used. However, the contact surface between the sealing ring and the pipe must be sufficient.

5. Treatment of non-concrete walls

If the wall is not concrete, the installation position must be adjusted to a concrete wall to ensure the stability of the waterproof casing pipe. This is very important for the installation and sealing of the waterproof casing pipe.

Acceptance criteria

After the installation is completed, the installation effect of the flexible waterproof casing pipe needs to be inspected to ensure that it meets the following standards:

1. Good sealing

During the inspection, it is necessary to check whether the connection between the flexible waterproof casing pipe and the pipeline is tight and whether there is leakage. You can apply an appropriate amount of water or other sealing materials for inspection to ensure that there is no leakage.

2. Neat appearance

During the inspection, it is necessary to check whether the appearance of the flexible waterproof casing pipe is neat and beautiful, and whether there is obvious damage or defects. If damage or defects are found, they should be repaired or replaced immediately.

3. Correct position

During the inspection, it is necessary to check whether the position of the connection between the flexible waterproof casing pipe and the pipeline is correct. If necessary, use the adjustment parts to adjust to ensure the accurate connection position.

Installation examples and experience sharing

In actual projects, the installation of flexible waterproof casing pipes may encounter various complex situations. For example, in basement waterproofing projects, due to the high groundwater level, the waterproofing requirements are extremely high. In this case, special attention should be paid to the following points when installing flexible waterproof casing pipe:

1. Strengthen sealing

In humid environments such as basements, more efficient sealing materials, such as special waterproof sealants, should be used to enhance the sealing effect.

2. Regular inspection

Since humid environments such as basements are prone to mold and bacteria, flexible waterproof casing pipes should be inspected and maintained regularly to ensure their long-term effectiveness.

3. Reserve expansion joints

In environments with large temperature changes such as basements, appropriate expansion joints should be reserved to accommodate the expansion and contraction of pipes caused by temperature changes.

In addition, when installing flexible waterproof casing pipes, the use of other waterproof materials should also be considered. For example, in wall waterproofing projects, flexible waterproof casing pipes can be used in combination with waterproof materials such as waterproof coatings and waterproof membranes to form multiple waterproof barriers and improve the waterproof effect.

Conclusion

As an important waterproof material, flexible waterproof casing pipes play an irreplaceable role in construction projects. Through the correct installation method and strict acceptance standards, the effectiveness and durability of the flexible waterproof casing pipe can be ensured, thereby protecting the building structure from moisture leakage. I hope this article can provide valuable reference and inspiration for readers and help everyone better master the installation methods and techniques of flexible waterproof casing pipe.
