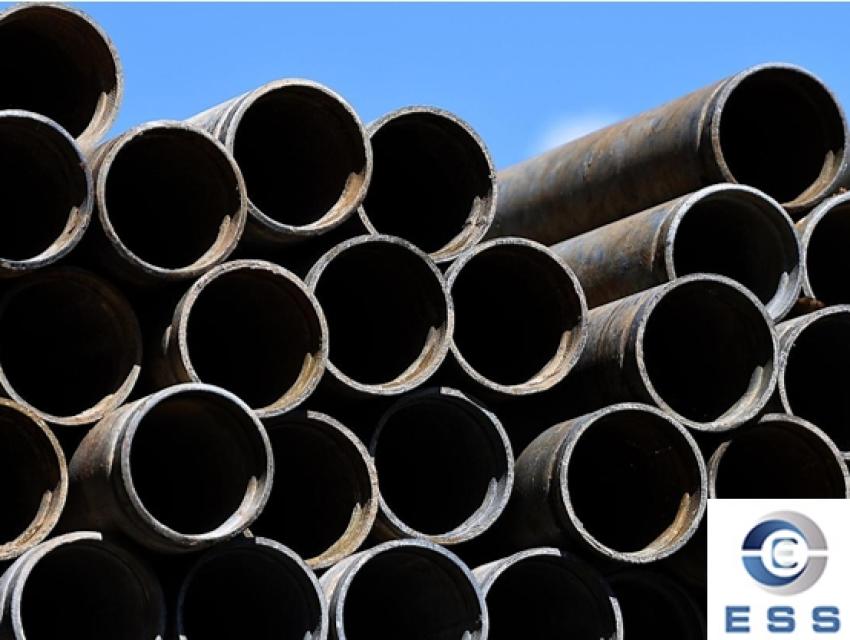

What is a high-pressure boiler tube?

High-pressure boiler tubes are designed for boiler systems and can work stably in high-temperature and high-pressure environments. They are mainly used in the heat exchange system of high-pressure boilers and are responsible for transporting high-temperature steam or water. Since the working pressure inside the boiler is high and the temperature often exceeds 450°C, these steel tubes must exhibit outstanding high-temperature resistance, corrosion resistance and pressure resistance.

What are the material requirements for high-pressure boiler tubes?

In the application scenarios of high-pressure boilers, commonly used steel tube materials include carbon steel tubes, alloy steel tubes and stainless steel tubes. These materials each have unique characteristics, which can adapt to different types of boilers and complex working environments.

1. Carbon steel tube

As a traditional boiler tube material, it is mainly suitable for boilers with low working temperatures and pressures. It has excellent processing performance and relatively low cost, but its durability is slightly insufficient in high-temperature and high-pressure environments.

2. Alloy steel tube

By incorporating elements such as nickel, chromium, and molybdenum, the strength, high-temperature resistance and corrosion resistance of the material are significantly improved. This type of steel pipe is very suitable for use in high temperature and high pressure environments, and can significantly extend the service life of boiler pipes.

3. Stainless steel pipes

With its excellent oxidation resistance, corrosion resistance and high strength, it is particularly suitable for boiler applications that require extremely high temperature resistance and corrosion resistance. Especially in environments with corrosive gases and chemicals, stainless steel pipes can show excellent durability.

How are high-pressure boiler tubes produced?

The production process of high-pressure boiler tubes is very rigorous, covering many important links such as steel tube forming, heat treatment and strict testing. Next, we will introduce the main process flow of high-pressure boiler tube production in detail.

1. Steel tube forming

The forming process of high-pressure boiler tubes mainly relies on rolling and drawing. The choice of these processes will vary depending on the tube diameter and wall thickness.

2. Hot rolling process

The heated steel billet is rolled through rollers to obtain a steel tube of the desired shape. This method is particularly suitable for the production of large-diameter, high-walled steel tubes, and its finished product shows excellent strength and stability.

3. Cold drawing process

The steel tube is stretched at room temperature to achieve higher dimensional accuracy and surface quality. This process is more suitable for the production of small diameter and thinner wall high pressure boiler tubes.

4. Heat treatment process

In the production process of high pressure boiler tubes, heat treatment is a crucial link. It covers a variety of technical means such as annealing, normalizing, quenching and tempering, aiming to comprehensively improve the various properties of steel tubes, including mechanical strength, high temperature resistance and corrosion resistance.

5. Precision testing and quality control

In the production process of high pressure boiler tubes, precision testing and strict quality control are indispensable links. Steel tubes must undergo a series of detailed dimensional measurements, mechanical property tests, and non-destructive testing to ensure that each product meets the preset quality standards.

What are the performance of high pressure boiler tubes?

1. High temperature resistance

High pressure boiler tubes need to work continuously in a high temperature environment above 450℃, so their materials must have excellent high temperature resistance. By incorporating alloying elements, such as chromium and molybdenum, the high-temperature resistance of steel pipes can be significantly enhanced, thereby effectively resisting damage from high-temperature oxidation and ablation.

2. Corrosion resistance

The boiler system is filled with high-temperature and high-pressure water vapor, as well as acidic and alkaline media. These environmental conditions pose severe challenges to the corrosion resistance of steel pipes. However, by selecting steel with higher alloy content, such as P91 and T92, the durability of steel pipes in corrosive environments can be significantly improved, extending their service life.

3. High strength and high pressure resistance

Since high-pressure boiler tubes need to withstand the high pressure inside the boiler, their strength requirements are extremely strict. To ensure that there is no rupture or deformation under high pressure, the tensile strength and yield strength of the steel pipe must meet the established standards.

4. Fatigue resistance

In the high-pressure boiler system, the flow of steam and water will cause periodic changes in pressure, which requires high-pressure boiler tubes to have good fatigue resistance. Only in this way can it be ensured that during long-term use, the steel pipe will not crack or break due to fatigue, thereby ensuring the stable operation of the system.

In what areas are high-pressure boiler tubes used?

1. Application in the power industry

In the power industry, high-pressure boiler tubes play a vital role, especially in the boiler system of power plants. Whether it is coal-fired power generation, nuclear power or thermal power generation, these large-scale power systems are inseparable from the application of high-pressure boiler tubes. Since these boilers need to withstand the impact of high-temperature and high-pressure steam for a long time, it is particularly important to select high-pressure boiler tubes with excellent high-temperature resistance and corrosion resistance.

2. Application in the chemical industry

In the chemical industry, high-pressure boiler tubes also play a key role, especially in the boiler systems of fertilizer plants and petrochemical plants. These plants need to transport high-temperature and corrosive gases or liquids, so high-pressure boiler tubes must have excellent high-temperature resistance and corrosion resistance to ensure the stable operation of the system.

3. Application in the metallurgical industry

In the metallurgical industry, high-pressure boiler tubes are widely used in high-temperature furnaces and heat exchange systems in steel plants. These systems need to transmit high-temperature steam or gas, so high-pressure boiler tubes must have excellent high-temperature resistance to ensure the efficiency and stability of the production process.

Summary

As the core material in high-temperature and high-pressure systems, high-pressure boiler tubes are widely used in many important industries, including power, chemical, metallurgy, etc. In view of the harsh working environment these boilers are subjected to, extremely stringent requirements are placed on the performance of steel tubes. When selecting high-pressure boiler tubes, their strength, high-temperature resistance, and corrosion resistance must be comprehensively considered, and attention should also be paid to the material's adaptability to the environment and its service life. With the continuous advancement of materials science and manufacturing technology, high-pressure boiler tubes will show more outstanding performance and longer durability in the future, thus providing solid support for the stable and efficient operation of various industries.
