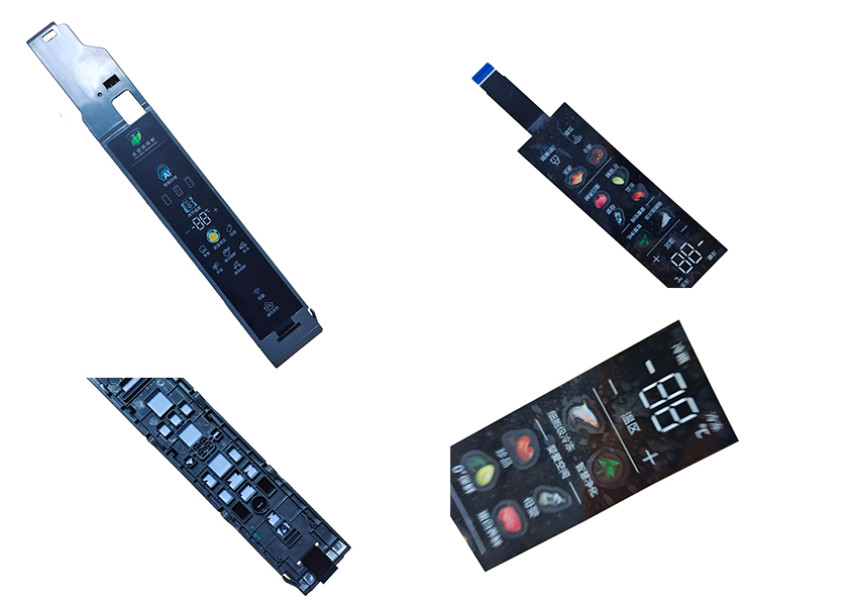

DchsPanel ,the Membrane switch panel material including PET/Pc cover, PMMA / Acrylic cover ,Glass Cover ,silicone rubber keypad ,Composite material like Acrylic+Pc,the interior material include the tactile ,LGF film , anti-explosion film ,led backlight, FPC, circuit layer, insulation spacer ,adhesive layer ..etc.
the processing technology adopt the screen printing UV printing / digital printing graphic overlay on the top panel then integrating the printing circuit or FPC board to reach capacitive touch effect ,or silicone rubber keyboard with tactile dome to press the switch.
These switch panel is widely used in these filed :
#-Home appliance Electronic Controller or household electrical appliances #2-lndustrial control equipment manufacturer #3-medical electrical devicesmanufacturer#4-Automotive electrical module provider #5-Fitness equipment manufacturer #6-medical aesthetic treatment solutions #7-nteligeninstrument manufacturers #8-Touch intelligent electronic scale/products
lf list the switch panel application specify products in these list items:
A#- lnstruments : measuring instruments, analytical instruments, medical instruments, communication instruments, navigation instruments B#- Mechanical and electrical products: CNC machine tools, electronic scales, robots, treadmills, printing machinery, etc.. C#- Computer: operating keyboard, printer, plotter, scanner, etc
D#- 0ffice equipment: telephone, fax machine, copier, translator, computer, learning machine, etc
E#- Electronic toys: electronic targets, electronic piano, game consoles, etc F#- Household (home) appliances. air conditioning, washing machine, refrigerator, fan, audio and video equipment remote control, smart electronic lock microwave oven, induction cooker ,rice cooker, Dryer, Dish-Washing Machine ,Tea Bar Machine, Wine Cabinet, Water Dispenser ..etc
DchsPanel are the supplier of these brand customer with good quality and good service, Topband, HUALIAN, Molex,TCL, Haler, Gree ,Midea ,...etc
The INTRUDUCTION of CAPACITIVE Membrane switch Popular introduction from DCHSPANEL
1. Membrane Structure
The heart of a membrane keypad lies in its unique structure, comprising multiple layers: a top graphic overlay, a spacer layer, and a bottom circuit layer. These layers work in harmony to provide users with a tactile interface.
2. Tactile Response
A defining feature of membrane keypads is their tactile response. The spacer layer, made of flexible materials like polyester or polyethylene, offers the necessary resistance and feedback when a key is pressed.
3. Durability
Known for their durability, membrane keypads have a top graphic overlay typically made from materials like polyester or polycarbonate, ensuring resistance to wear and tear, chemicals, and environmental factors.
4. Customization
Manufacturers can easily customize the graphic overlay of membrane keypads, allowing for specific graphics, icons, or brand logos. This makes the keypads highly adaptable to various applications.
Membrane Keypad Applications
Membrane keypads are versatile and used across various industries:
1. Medical Devices
In the medical field, where hygiene and precision are paramount, membrane keypads are used in devices like infusion pumps, ventilators, and diagnostic equipment due to their ease of cleaning and accurate input.
2. Industrial Control Panels
Manufacturing plants and industrial facilities rely on membrane keypads for control panels, as they are resistant to dust, moisture, and chemicals, making them ideal for such environments.
3. Consumer Electronics
From remote controls to microwave ovens, membrane keypads are common in household electronics, favored for their longevity and ease of use.
. Automotive Interfaces
Automobile manufacturers often use membrane keypads in dashboard controls and climate systems due to their sleek design and durability.
5. Aerospace and Defense
In aerospace and defense, membrane keypads are crucial in cockpit controls, communication equipment, and military devices, where precision and reliability are essential.
Technological Advancements in Membrane Keypads
As technology advances, so do membrane keypads:
. Backlit Keyboards
Backlit membrane keypads enhance usability in low-light conditions, commonly found in remote controls and ATM machines.
2. Capacitive Touch
Modern membrane keypads sometimes utilize capacitive touch technology, similar to that in smartphones and tablets, providing a more seamless and responsive user experience.
3. Integration with Displays
Increasingly, membrane keypads are being integrated with displays to create interactive touchscreen interfaces, seen in ATMs, ticket vending machines, and more.
he Future of Membrane Keypads
As technology evolves, membrane keypads are expected to keep pace with new trends and demands:
1. Smart Home Integration
With the rise of smart homes, membrane keypads will likely play a pivotal role in controlling various household devices and systems.
2. Enhanced Durability
In industrial and rugged environments, there is a growing need for even more durable membrane keypads to withstand extreme conditions.
3. Sustainability
Environmental concerns are driving the development of eco-friendly materials and manufacturing processes for membrane keypads.
In Summary
Membrane switch keypads are not just buttons; they are the tactile interfaces connecting us to countless devices and systems in our daily lives. Their durability, versatility, and adaptability make them indispensable across various industries, from healthcare to aerospace. As technology continues to advance, membrane keypads will remain at the forefront, adapting to the ever-changing needs of users and industries.
